Current Transducer

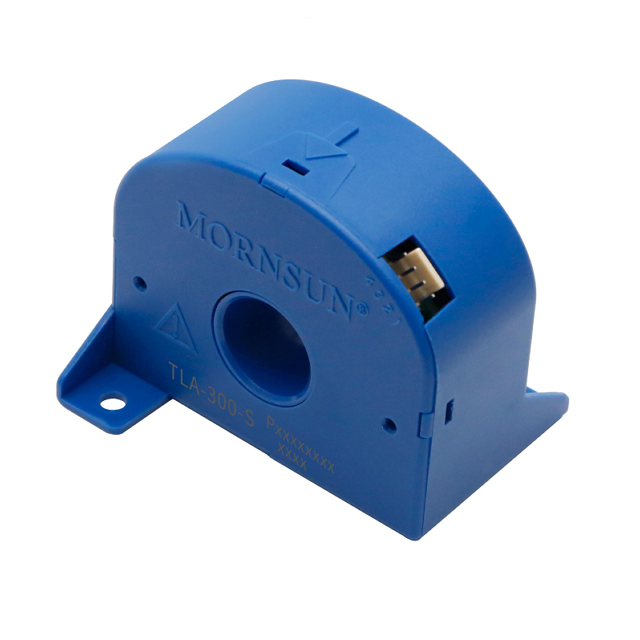

Die Stromwandler von MORNSUN nutzen ein Kompensationsprinzip, bei dem der Sekundärstrom so von einem Hallsensor gesteuert wird, dass sich die Magnetfelder aus primärer und sekundärer Erregung gerade aufheben. Die Bausteine der Serie TLA erlauben die präzise Messung von Wechsel- Gleich- und Pulsströmen mit Effektivwerten von 50A bis 300A. Zu ihren wesentlichen Eigenschaften zählen hohe Genauigkeiten und  Linearitäten und eine auf 7.000V ausgelegte Isolation.

MORNSUN_Smart Control Modules - Smart Control Modules_Current Transducer
MORE
  • Product series

  • Supply Voltage(VDC)

  • Measurement

  • Primary nominal rated RMS current

  • Rated Output range

  • Precision

  • Linearity

Current Transducer : 24 Ergebnisse

Loading...

Swipe to view all →
Series Supply Voltage(VDC) Measurement Primary nominal rated RMS current Rated Output range Precision Linearity Package Turns ratio Turns ratio Footprint & 3D Markings Datasheet Sample Buy
TLAx00-S
± 12/±15 Direct current

details

-

details

-

details

-

details

-
Disc type (bolt fixed)

details

-

details

-
-
-
-
-
-
TLA100-S ± 12/±15 Direct current 100A -200~+200 0.005 0.001 Disc type (bolt fixed) 1/2000 1/2000
TLA200-S ± 12/±15 Direct current 200A -300~+300 0.005 0.001 Disc type (bolt fixed) 1/2500 1/2500
TLA300-S ± 12/±15 Direct current 300A -500~+500 0.005 0.001 Disc type (bolt fixed) 1/2000 1/2000
TLA500-S ± 12/±15 Direct current 500A -800~+800 0.005 0.001 Disc type (bolt fixed) 1/2000 1/2000
TLA50-S ± 12/±15 Direct current 50A -100~+100 0.005 0.001 Disc type (bolt fixed) 1/2000 1/2000
TLx00-D2C
± 12/±15 AC/DC

details

-

details

-

details

-

details

-
Plastic case

details

-

details

-
-
-
-
-
-
TL100-D2C ± 12/±15 AC/DC 100A -150~+150 0.003 0.0005 Plastic case 1/1000 1/1000
-
TL300-D2C ± 12/±15 AC/DC 300A -450~+450 0.003 0.0005 Plastic case 1/3000 1/3000
-
TL300-D2C-SZ ± 12/±15 AC/DC 300A -450~+450 0.003 0.0005 Plastic case 1/3000 1/3000
-
TLx00(P)-D1C
± 12/±15 AC/DC

details

-

details

-

details

-

details

-
Disc type (bolt fixed)

details

-

details

-
-
-
-
-
-
TL100-D1C ± 12/±15 AC/DC 100A -150~+150 0.005 0.001 Disc type (bolt fixed) 1/2000 1/2000
-
TL200-D1C ± 12/±15 AC/DC 200A -300~+300 0.005 0.001 Disc type (bolt fixed) 1/2000 1/2000
-
TL300-D1C ± 12/±15 AC/DC 300A -500~+500 0.005 0.001 Disc type (bolt fixed) 1/2000 1/2000
-
TL100P-D1C ± 12/±15 AC/DC 100A -150~+150 0.005 0.001 Disc type (bolt fixed) 1/2000 1/2000
-
TL200P-D1C ± 12/±15 AC/DC 200A -300~+300 0.005 0.001 Disc type (bolt fixed) 1/2000 1/2000
-
TL300P-D1C ± 12/±15 AC/DC 300A -500~+500 0.005 0.001 Disc type (bolt fixed) 1/2000 1/2000
-
TLxxx-A2(T)PV
5 AC/DC

details

-

details

-

details

-

details

-
PCB

details

-

details

-
-
-
-
-
-
TL100-A2PV 5 AC/DC 100A -300~+300 ±0.005 ±0.001 PCB 1/1800 1/1800
-
TL150-A2PV 5 AC/DC 150A -450~+450 ±0.005 ±0.001 PCB 1/1800 1/1800
-
TL200-A2PV 5 AC/DC 200A -500~+500 ±0.005 ±0.001 PCB 1/1800 1/1800
-
TL100-A2TPV 5 AC/DC 100A -300~+300 ±0.005 ±0.001 PCB 1/1800 1/1800
-
TL150-A2TPV 5 AC/DC 150A -300~+300 ±0.005 ±0.001 PCB 1/1800 1/1800
-
TL200-A2TPV 5 AC/DC 200A -300~+300 ±0.005 ±0.001 PCB 1/1800 1/1800
-
TLxx-A3TPV
5 AC/DC

details

-

details

-

details

-

details

-
PCB

details

-

details

-
-
-
-
-
-
TL6-A3TPV 5(±5%) AC/DC ±6 Uref±0.625 0.0045 0.001 PCB 1/1600 1/1600
-
TL15-A3TPV 5(±5%) AC/DC ±15 Uref±0.625 0.0045 0.001 PCB 1/1600 1/1600
-
TL25-A3TPV 5(±5%) AC/DC ±25 Uref±0.625 0.0045 0.001 PCB 1/1600 1/1600
-
TL50-A3TPV 5(±5%) AC/DC ±50 Uref±0.625 0.0045 0.001 PCB 1/1600 1/1600
-

* Referenzparameter. Technsiche Details entnehmen Sie bitte dem zugehörigen Datenblatt
