URF1D_HB-250WR3A7

Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.

Features

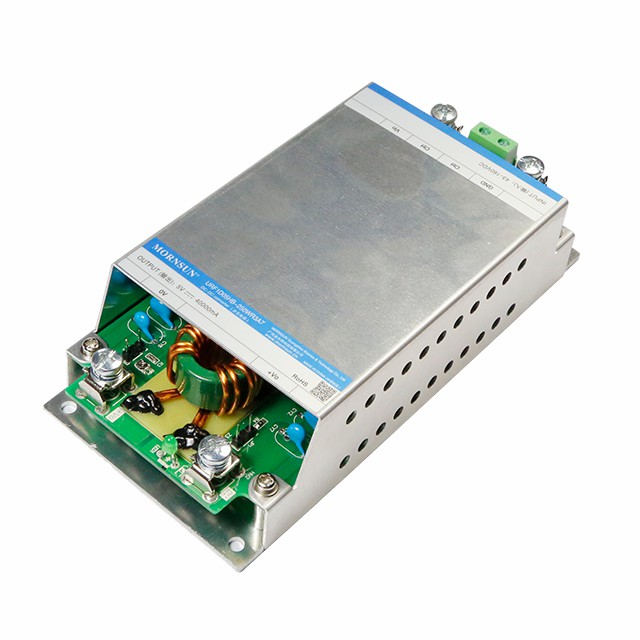

URF1D_HB-250WR3A7 series is a high-performance product with an integrated EMC solution designed for railway applications. The DC-DC converters feature 250W output power with no requirement for minimum load, wide input voltage from 43-160VDC, and allowing operating temperature as high as 100℃. Additional product features include input under-voltage protection, reverse polarity protection, output over-voltage, over-current, short-circuit and over-temperature protection, remote On/Off control, output voltage trim adjustment. EN50155 approved and they are widely used in the centralized lighting, air conditioning and related in on-board equipment.

MORNSUN_DC/DC - Wide Input_URF1D_HB-250WR3A7
MORE
Loading...

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation Package Dimension(mm) Footprint & 3D Markings Datasheet Sample
URF1D05HB-250WR3A7 250 110(43-160) 5 1 3000VAC Chassis 165.0*78.0*41.5
-
URF1D12HB-250WR3A7 250 110(43-160) 12 1 3000VAC Chassis 165.0*78.0*41.5
-
URF1D15HB-250WR3A7 250 110(43-160) 15 1 3000VAC Chassis 165.0*78.0*41.5
-
URF1D24HB-250WR3A7 250 110(43-160) 24 1 3000VAC Chassis 165.0*78.0*41.5
-
URF1D48HB-250WR3A7 250 110(43-160) 48 1 3000VAC Chassis 165.0*78.0*41.5
-
URF1D54HB-250WR3A7 250 110(43-160) 54 1 3000VAC Chassis 165.0*78.0*41.5
-

* Referenzparameter. Technsiche Details entnehmen Sie bitte dem zugehörigen Datenblatt
