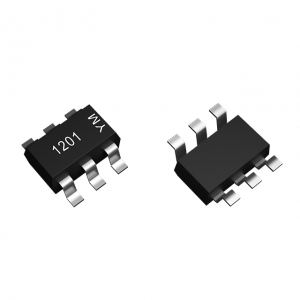

SCM1201B

Features

TheSCM1201BisadriverintegratedwithMOSFETsfortheprimarysideofapush-pullpower.Thechipcanfunctionatthelowinputvoltageof 3V,andwillnotbedamagedunderthehighinputvoltageof9Vinonesecond..Thedevicecontains,twodrivesystemsandtwopowerMOSFET,and eachdrivesystemdecidescircuit’sdirectionofoneprimarywinding.EachdrivesystemincludesonepowerNMOSFET.Twodrivesystemsoperatein turnstoachievepush-pulldrive.TwopowerNMOSFETsarehighlysymmetricalinordertodecreasethedegreeofmagneticbiasingofpush-pull topology.TheSCM1201Bisalsointegratedwiththreekeytechnologiestoimprovereliability.Thefirstoneissoftstartfunction,whichlimitsthecurrent ofMOSFETtoavoidthedamagecausedbythelargecurrentimpactwhenturningonthepower,andquantitativelyguaranteesthecapacitiveloadin CCloadmode.Thesecondoneisoutputover-currentandshortcircuitprotection.Ontheonehand,theSCM1201Bdistinguishesbetweenthe over-currentprotectionandtheshort-circuitprotection,whichcancontroltheshort-circuittemperaturerisewhileguaranteethecapacitiveload.Onthe otherhand,thechipcanadjustprotection’sthresholdbasedontheinputvoltageandtempreaturetoimprovetheconsistency.Thelastoneisover temperatureprotection,whenthechipoperatesbeyondthespecifiedtemperature,itwillentersthedormancystateautomatically.Itwilloperateagain whenthetemperaturedecreasestothesetpoint.

MORNSUN_ - ICs für Stromversorgungen_SCM1201B
MORE
Loading...

Swipe to view all →
Product No. Power(W) Package Topology Control Mode Fsw(khz) OTP OCP SCP UVLP OLP Datasheet Sample Buy
SCM1201B ≤1 TSOT-23-6 Push-Pull - 245 Built-in Built-in Built-in Built-in Built-in

* Referenzparameter. Technsiche Details entnehmen Sie bitte dem zugehörigen Datenblatt
